HONDA YAMAHA'S deluxe models, expensive models are equipped with original smart keys, but the cheap standard models are still equipped with the old type Ignition switch lock, so our factory are offering a solution if some clients have a willing to change their old type lock to the smart key system。

Our smart keys can fit most HONDA YAMAHA Scooter&Moped (CUB), which equiped with old type iginition lock,easy to install (PNP plug and play)

BUY

If you have any questions about the smart lock, please continue reading

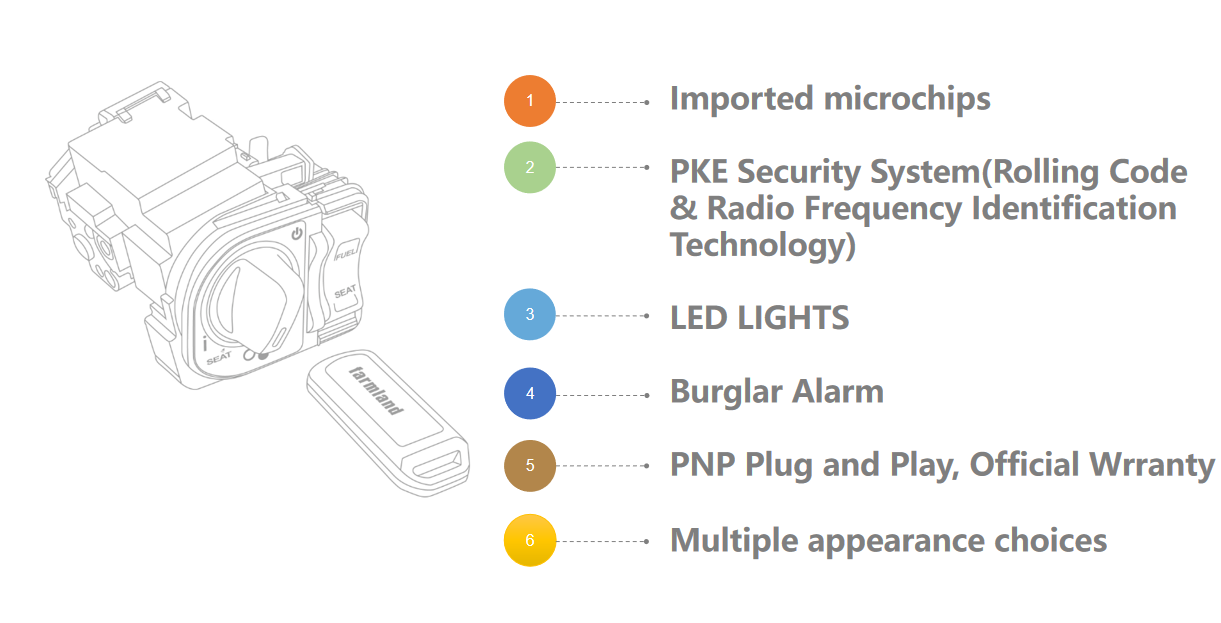

Advantage

  • Which equiped with old type iginition lock

  • Fit most HONDA YAMAHA Scooter&Moped (CUB)

  • Easy to install (PNP plug and play)

PKE Security System

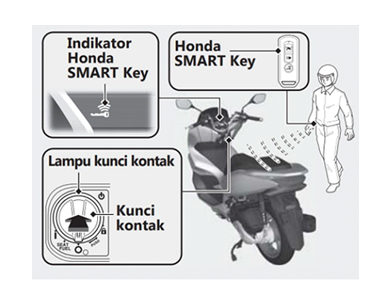

A PKE device(KEY FOB) can operate while stored in the user's pocket or bag, unlike a standard remote keyless entry (RKE) device, which requires the user to hold the device and push a button to lock or unlock.

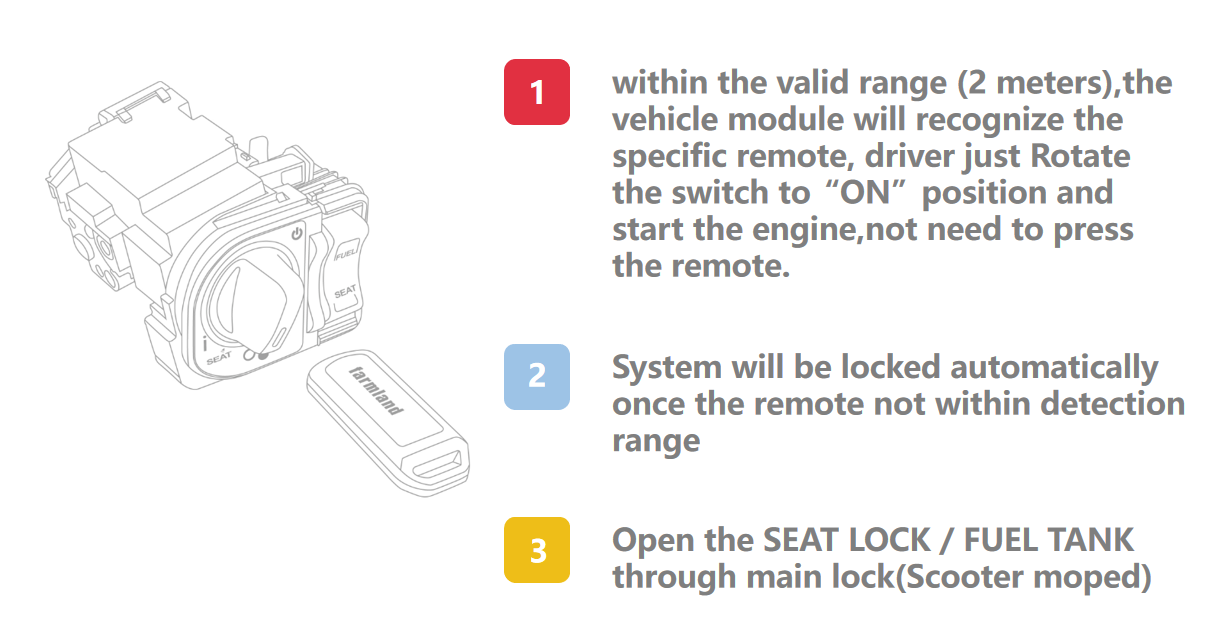

The vehicle module continually sends out encoded messages; when the key fob is in range it responds. If the encrypted messages are correct, they identify the vehicle and key fob to each other,and bike unlocked automatically. PKE systems use rolling codes to ensure that a fresh code is supplied each time, preventing a replay attack.(Anti-Intercept)

Features & Funcations

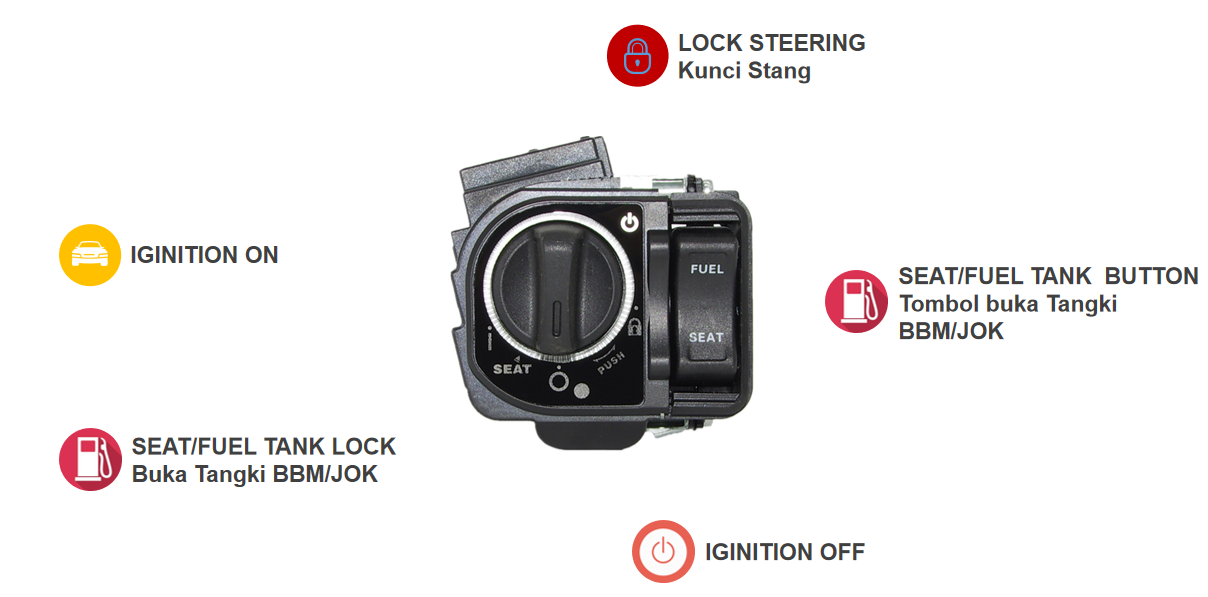

MAIN LOCK

KEY FOB (REMOTE)

RESPONSE/ANSWER BACK BUTTON

short press to search for the motorcycle
Bunyinya "tiit tiit" disertai kedipan lampu sein depan-belakng, untuk membantu mencari motor saat di parkiran

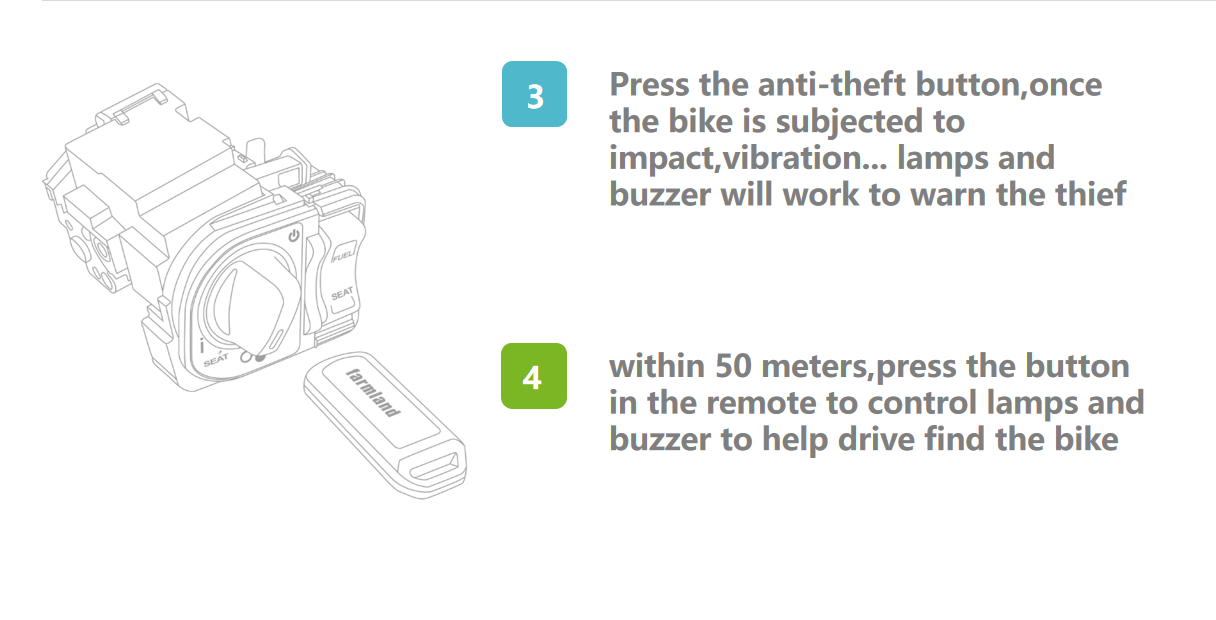

ANTI-THEFT BUTTON

short press to turn on anti-theft burglar alarm system
Alarm akan menyala "tiit tiit" terus-terusan jika motor terguncang atau ada getaran terdeteksi pada motor.

ON-OFF BUTTON

Pair text with an image to focus on your chosen product, collection, or blog post. Add details on availability, style, or even provide a review.

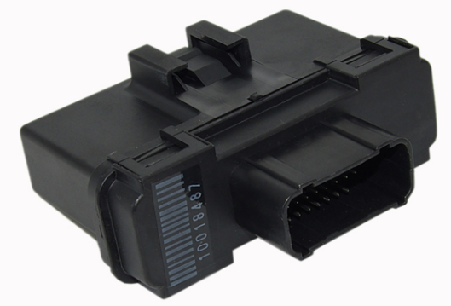

CONTROL UNIT (VEHICLE MODULE)

 MEASUREMENT
MATERIAL ABS Shell & electronic component
N.W.
WORKING VOLTAGE 12V
MHZ 315.HZ
HORN LEVEL ≈102-125dB
DETECTION RANGE 0.5-2M
REMOTE CONTROL DISTANCE 50M
WATERPROOF LEVEL IP62

Appearance Packgae

1. Hydrographics film carbon fiber
Hydro dipping film carbon fiber
Water transfer pringting
*Taiwan made films

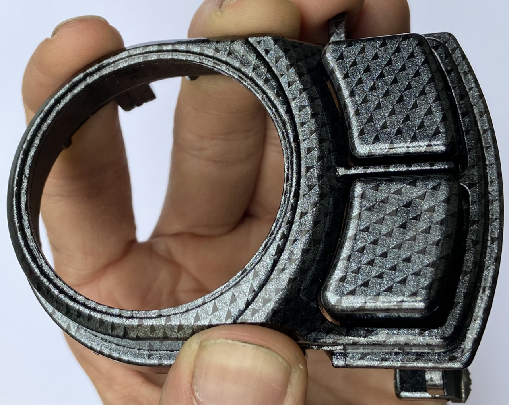

2. CNC aluminum knob/buckle (Sand Blasting, Anodic Oxidization)

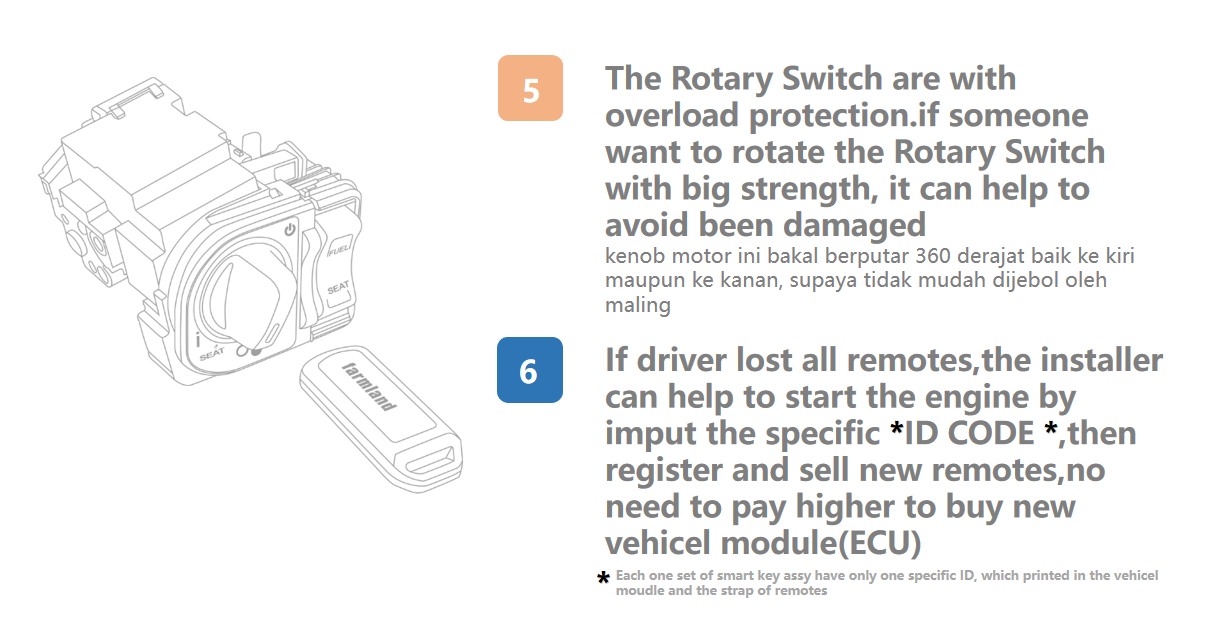

Register a new Remote (Start without remote)

  • 1

    open the plactic sockets ,insert the plug to the third socket

  • 2

    According to the ID number,press the knob in turn.”1” press 1 time, ”0” press 10 times.

    The buzzer will beeps twice after the user finished each number.

  • 3

    The system will be unlocked and main lock is powered on once user inputting all correct numbers

  • 4

    After press the last ID code,Hold a new remote, Press the “ON-OFF” button immediatelyto turn on the remote ,

    after the indicator light turn Green,keep pressing “RESPONSE” button for more than 3 seconds

  • 5

    The new remote registered successfully,and the old remotes will not work anymore
