FA-34

FA-34

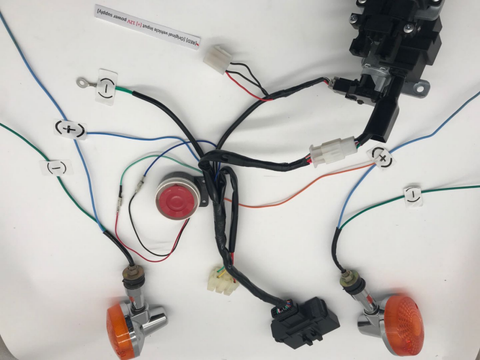

Use Figure FA-34 according to the installation and power connection method

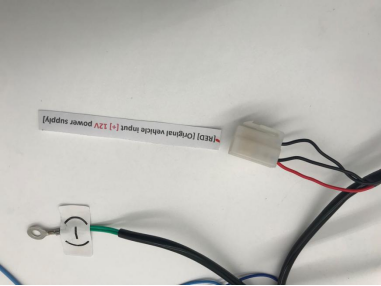

[1]  [RED] [Original vehicle input     [+] 12V power supply]

























LED Indicator light

Press this button to locate the car in 50M2.Meanw hile,the turning light flickers twice and the HORN rings twice

Press 3 seconds and the LED lights turn red andquiet.Turn green and sound

Press 1,HORN rings,and then rings again to enterthe anti-theft function.(If two sounds are heard atthe same time,the anti-theft function will be cancelled

Press on/off.3 seconds.LED lamp,turn red.OFFremote control (if LED lamp).Green,ON remotecontrol,can operate the door lock.



[Communication range when leaving your motorcycle],

Wheu the main switch knob is set to（i） "SEAI", or position and you are about 2.0 merers (6.7 fcet)or more from your motorcycle,communication may be interrupted and the main switch will not turn.(The actual communication range may vary according to surrounding conditions.)



[2]  [BLACK] [When turning the lock; output     [+] 12V power supply]

[3]  [BLACK] [When turning the lock; output     [+] 12V power supply]
